Description

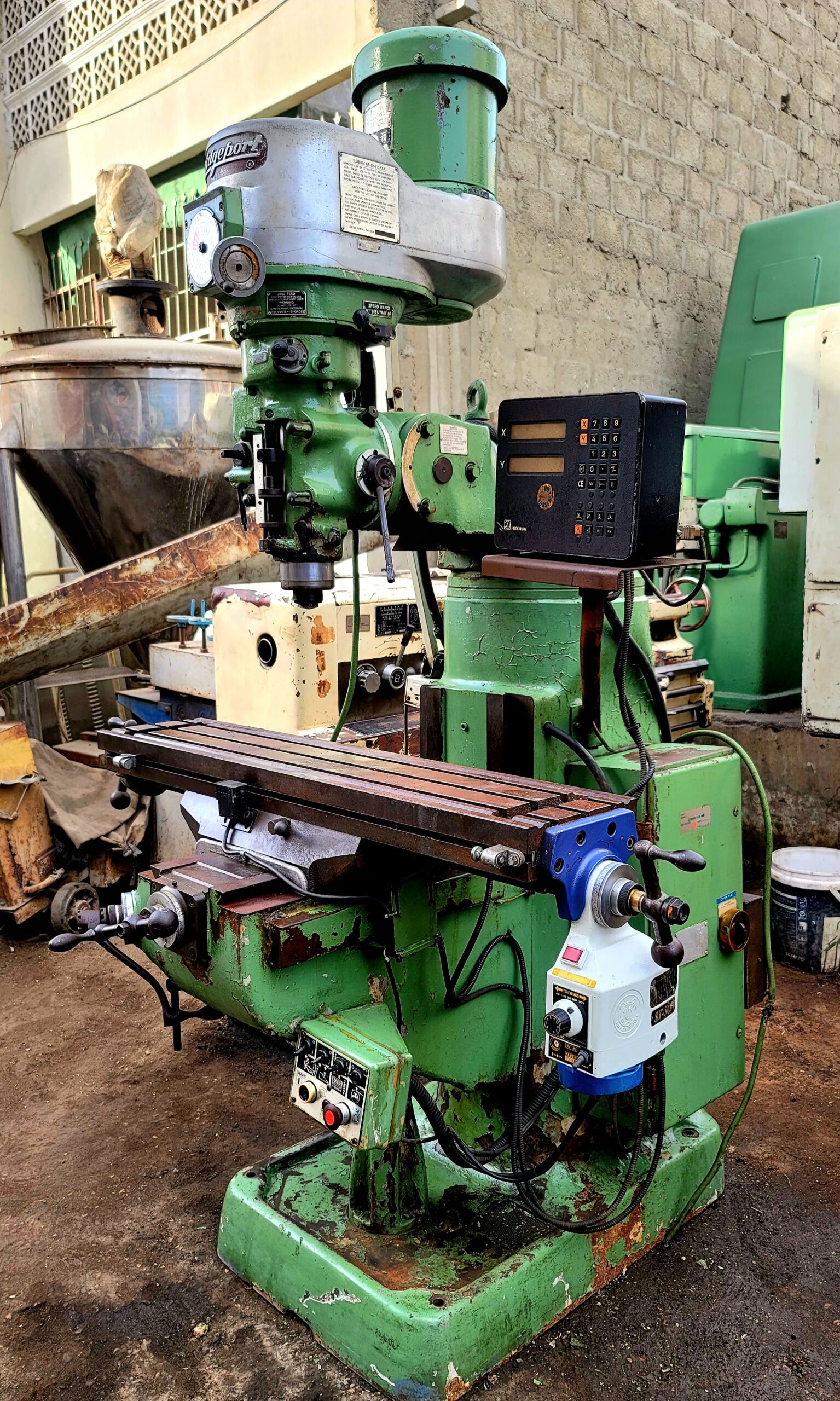

Milling Machine

Brand Bridgeport

Table Size: 9″ x 42″

Longitudinal Table Travel: 30″

Saddle Cross Travel: 12″

Knee Vertical Travel: 16″

Spindle Quill Travel: 5″

Ram Travel: 12″

Throat Distance Range: 6.75″ – 18.75″

Table To Spindle Nose Distance Range:

2.5″ – 18.25



Spindle Speeds, Variable: 60 -4,200 RPM

Maximum Uniform Table Load: 300 lbs

Power Table Feed Rate: .75″ -35″/min

Machine Dimensions: 70″ X 60″ X 82H

Power: 230\/3-Ph/60Hz

EQUIPPED WITH: Mitutoyo Digital

Readout
